Model No.
|
Price
|
Buy Online
|
|
DCGS-2005L
(Plastic Case)
|
$149.95
|
|
|
DCGS-2005
(Metal Case)
|
$169.95
|
|
Copyright © 2005~2012 DualComm Technology, Inc. All Rights Reserved.
USB Powered 5-Port 10/100/1000Base-T Gigabit Switch TAP
(Patent Pending)
(Patent Pending)
•
"Hardwired" Port-Mirroring. Plug & Play. No user configuration needed
•
PoE Pass-Through
•
USB Powered
•
True Gigabit Performance
|
Power Input
|
5VDC or power from a host USB port
|
|
Port Mirroring
|
Port #1 is mirrored to Port #5.
|
|
PoE Inline Power Pass-Through
|
Between Port #1 and Port #2. Support both standard PoE 802.3af and PoE+ (802.3at)
|
|
Standards
|
IEEE 802.3 10BASE-T, 100Base-TX and 1000Base-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.1p Priority Queuing
|
|
Network Interface
|
5 auto-negotiation 10/100/1000Mbps RJ-45 switching ports with Auto-MDI/MDIX
|
|
Cable Requirements
|
UTP CAT5e up to 328ft/100m
|
|
Forwarding Method
|
Store and forward
|
|
MAC Address
|
4K (automatic update)
|
|
Buffer Memory
|
104 KB RAM
|
|
Jumbo Frame Size
|
9KB
|
|
LED Indicators
|
one LED for power indication and 5 LEDs, each for link/activity per port
|
|
Flow Control
|
Standard back pressure on half-duplex mode, and standard IEEE 802.3x on full-duplex
|
|
EMC Compliances
|
FCC Part 15 and CE
|
|
Dimensions
|
6.9” x 4.9” x 1.2” (L x D x H)
|
|
Warranty
|
One year manufacturer warranty
|
[Specifications]
[Typical Applications]
•
Reuse of 10/100M IP phone in a Gigabit LAN
•

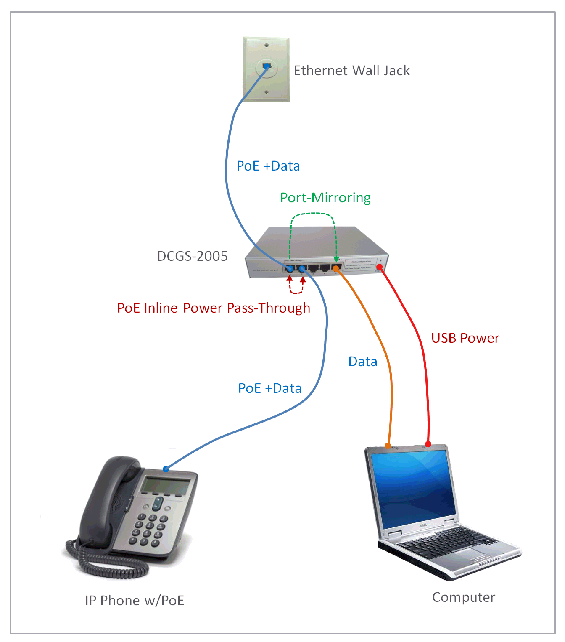

Using a PC to record IP Phone calls
•

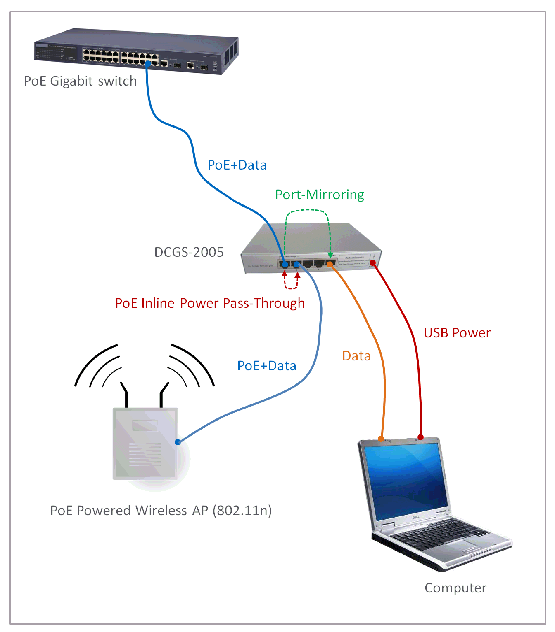

Packet Sniffing. Monitoring traffic for a PoE powered Access Point (AP)
[Description]
Dualcomm patent pending 5-Port 10/100/1000Base-T Gigabit Switch TAP (DCGS-2005/DCGS-2005L) can be used as both a 5-Port 10/100/1000base-T gigabit Ethernet switch and a gigabit copper network TAP (Test Access Point). It offers several unique features that differentiate it from other vendor's products and solutions on the market.
Power over Ethernet Inline Power Pass-Through
DCGS-2005/DCGS-2005L is implemented with a set of two ports to facilitate the pass-through of Power-over-Ethernet (PoE) inline power between these two ports. This is a very useful feature that will allow a DCGS-2005/DCGS-2005L to be placed and connected in between a PoE switch and a PoE powered device such as a PoE enabled IP phone without blocking the PoE inline power from reaching the PoE powered device.
The PoE Inline power pass-through also makes it possible to reuse a 10/100 IP phone in a "Gigabit to Desktop" connection. Otherwise, a more expensive IP phone with Gigabit ports has to be used to achieve end-to-end gigabit network connection.
Port-Mirroring
DCGS-2005/DCGS-2005L offers a unique and low cost solution for capturing and monitoring network traffic by means of Port-Mirroring. Port-Mirroring used to be a feature found only in much more expensive managed switches requiring manual port configuration, but DCGS-2005/DCGS-2005L makes it plug and play and hassle free without going over your budget.
USB Powered
DCGS-2005/DCGS-2005L is designed to be conveniently powered by a USB port of a computer. To users, this means one less AC/DC power adapter to carry and one less AC outlet to hunt for!
Dualcomm patent pending 5-Port 10/100/1000Base-T Gigabit Switch TAP (DCGS-2005/DCGS-2005L) can be used as both a 5-Port 10/100/1000base-T gigabit Ethernet switch and a gigabit copper network TAP (Test Access Point). It offers several unique features that differentiate it from other vendor's products and solutions on the market.
Power over Ethernet Inline Power Pass-Through
DCGS-2005/DCGS-2005L is implemented with a set of two ports to facilitate the pass-through of Power-over-Ethernet (PoE) inline power between these two ports. This is a very useful feature that will allow a DCGS-2005/DCGS-2005L to be placed and connected in between a PoE switch and a PoE powered device such as a PoE enabled IP phone without blocking the PoE inline power from reaching the PoE powered device.
The PoE Inline power pass-through also makes it possible to reuse a 10/100 IP phone in a "Gigabit to Desktop" connection. Otherwise, a more expensive IP phone with Gigabit ports has to be used to achieve end-to-end gigabit network connection.
Port-Mirroring
DCGS-2005/DCGS-2005L offers a unique and low cost solution for capturing and monitoring network traffic by means of Port-Mirroring. Port-Mirroring used to be a feature found only in much more expensive managed switches requiring manual port configuration, but DCGS-2005/DCGS-2005L makes it plug and play and hassle free without going over your budget.
USB Powered
DCGS-2005/DCGS-2005L is designed to be conveniently powered by a USB port of a computer. To users, this means one less AC/DC power adapter to carry and one less AC outlet to hunt for!

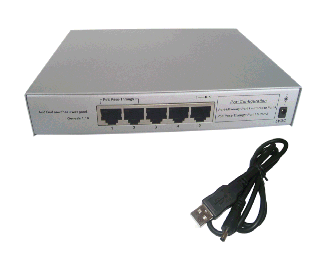

DCGS-2005
DCGS-2005L
10/100 models are available at lower prices. Check them here.
