| USB Powered 5-Port 10/100 Ethernet Switch with Port-Mirroring & PoE Pass-Through (Patent Pending) |
[Description]
This patent pending 5-port 10/100M Ethernet Switch (DCSW-1005/DCSW-1005PT) is another innovation by
Dualcomm that offers a unique and low cost solution for any network applications where port-mirroring is
required. Port-mirroring used to be a feature in many more costly managed switches requiring a series of
software configurations, but DCSW-1005/DCSW-1005PT makes it plug and play without any software
manipulations at a much lower price point
DCSW-1005/DCSW-1005PT also is engineered with a efficient power circuitry to be capable of receiving power
on a USB port and to operate reliably with up to five Ethernet connections at full speeds. With
DCSW-1005/DCSW-1005PT, an otherwise heavy and bulky AC/DC power adapter becomes not necessary!
DCSW-1005PT is further implemented with a set of ports for "Power over Ethernet" (PoE) inline power
pass-through, which provides a low cost solution to "expand" a PoE uplink port into four downstream ports,
one of which is capable of receiving the inline power from the uplink cable to power a connected PD (e.g. an
PoE enabled IP phone). This feature is extremely useful for the switch to work with a PoE powered device
such as PoE enabled IP phone, 802.11 wireless Access Point and IP camera.
For home or small business users, DCSW-1005 can be best used for a cost-effective packet sniffing setup to

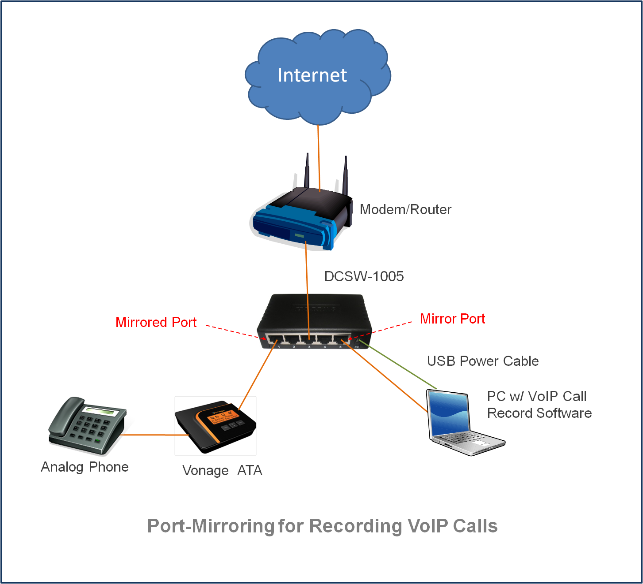

record VoIP calls. The network diagram below illustrates how DCSW-1005 can be used to facilitate VoIP
phone call recording. Click here to check our VoIP Call Recording solution!
For IT professionals, DCSW-1005 is surely a favorite gadget that soon will be found in their tool bags!
This patent pending 5-port 10/100M Ethernet Switch (DCSW-1005/DCSW-1005PT) is another innovation by
Dualcomm that offers a unique and low cost solution for any network applications where port-mirroring is
required. Port-mirroring used to be a feature in many more costly managed switches requiring a series of
software configurations, but DCSW-1005/DCSW-1005PT makes it plug and play without any software
manipulations at a much lower price point
DCSW-1005/DCSW-1005PT also is engineered with a efficient power circuitry to be capable of receiving power
on a USB port and to operate reliably with up to five Ethernet connections at full speeds. With
DCSW-1005/DCSW-1005PT, an otherwise heavy and bulky AC/DC power adapter becomes not necessary!
DCSW-1005PT is further implemented with a set of ports for "Power over Ethernet" (PoE) inline power
pass-through, which provides a low cost solution to "expand" a PoE uplink port into four downstream ports,
one of which is capable of receiving the inline power from the uplink cable to power a connected PD (e.g. an
PoE enabled IP phone). This feature is extremely useful for the switch to work with a PoE powered device
such as PoE enabled IP phone, 802.11 wireless Access Point and IP camera.
For home or small business users, DCSW-1005 can be best used for a cost-effective packet sniffing setup to
record VoIP calls. The network diagram below illustrates how DCSW-1005 can be used to facilitate VoIP
phone call recording. Click here to check our VoIP Call Recording solution!
For IT professionals, DCSW-1005 is surely a favorite gadget that soon will be found in their tool bags!
|
Power
Source |
USB
port on a desktop or laptop computer |
|
Port Mirroring |
Port #1 is mirrored to Port #5. |
|
Standards |
IEEE 802.3 10Base-T, IEEE 802.3u
100Base-TX |
|
Connectors |
5 auto-negotiation 10/100Mbps RJ-45
switching ports with Auto-MDI/MDIX |
|
Cable Requirements |
UTP CAT5e up to 328ft/100m |
|
Forwarding
Method |
Store and forward |
|
Packet Forwarding Rate |
10Base-T: 14,880 pps
to 10Mbps ports 100Base-TX: 148,800 pps to 10Mbps ports |
|
MAC Address |
2K |
|
Buffer Memory |
256 KB RAM |
|
LED Indicators |
one LED for power indication and 5
LEDs, each for link/activity per port |
|
Flow Control:
|
Standard back pressure on
half-duplex mode, and standard IEEE 802.3x on full-duplex |
|
EMC
Compliances |
FCC
Part 15 and CE |
|
Dimensions |
100 x 64 x 23 mm (L x W x H) |
[Specifications]
 | |  | |  | |  | |  |
| Copyright © 2005~2010 DualComm Technology, Inc. All Rights Reserved. |
- USB Powered
- Port Mirroring
- PoE Pass-Through (DCSW-1005PT)
- Mini Size
Model No.
DCSW-1005
DCSW-1005PT
DCSW-1005
DCSW-1005PT
